ASSK-B Solid Fuel Cylinderic Scotch Type Three Transitive Single Furnace St.Boiler

Solid Fuel Steam Boilers
Menu

ASSK-B Solid Fuel Cylinderic Scotch Type Three Transitive Single Furnace St.Boiler - General Features
    • It complies with TS EN 12953-1-3, TS 377-1-2-3-4-5-6-7-8- 10-11-12-14, TS EN 12953-1-2-3-4-5-6-7-8-10-11-12- 14 standards.
    • It burns solid fuel with high effi cacy.
    • It is manufactured with computer aided design and manufacturing technology in accordance with CE quality standards, TRD pressure vessels directive, EN, TSE standards.
    • Thanks to large water and steam, it easily meets the necessary steam need in intensive and persistent working conditions and sudden steam traction.
    • With the advantage of high heating surface, it provides acquiring drier steam with higher energy.
    • With low counter pressure values, it provides better burning and less energy consumption.
    • It operates safer with the pipes welded to the mirrors and it ismore durable than the equivalents.
    • With Optimum isolation, it ensures maximum effi cacy and maximum performance.
    • Optimum combustion chamber dimensions ensure high heat transfer, radiation, more effi cient usage of heat transfer surfaces and the occurrence of full burning in combustion chamber.
    • It provides high effi cient full burning without economizers; it provides an environmentally friendly burning graph and reduces fuel consumption.
    • BFPN : 153.1100 are solid fuel boilers made from steam producer steel material under 3 atm construction pressure.
    • BFPN : 153.1400 are solid fuel boilers made from steam producer steel material under 6 atm construction pressure.

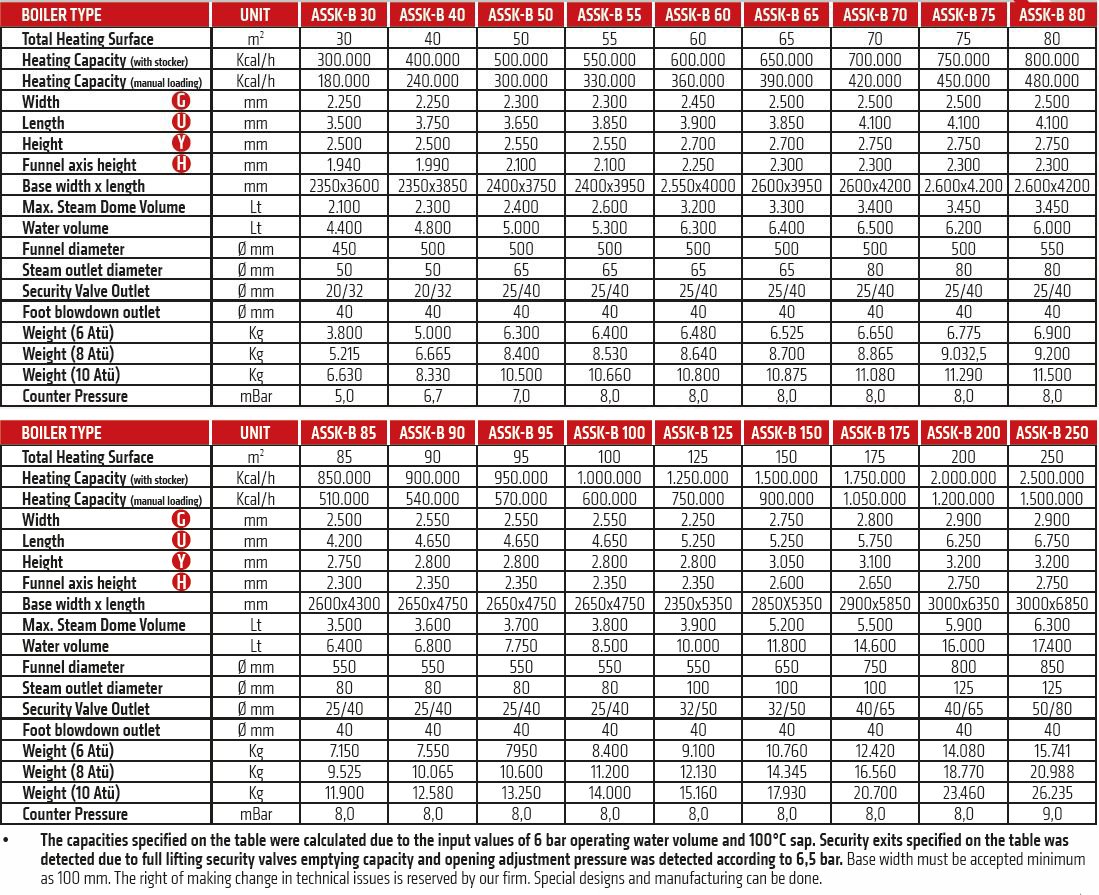

ASSK-B Solid Fuel Cylinderic Scotch Type Three Transitive Single Furnace St.Boiler - Technical Dimensions
assk-b_table_eng
