ASSF-K Liquid Gas Cylinderic Scotch Type Three Transitive Hot Water Boilers

Liquid Gas Fuel Hot Water Boiler

Menu

assf-k

Product Certifications

ce01

tse01

General Information
Technicial Specifications

ASSF-K Liquid Gas Cylinderic Scotch Type Three Transitive Hot Water Boilers - General Features

- It complies with TS EN 12953-1-3, TS 377-1-2-3-4-5-6-7-8- 10-11-12-14, TS EN 12953-1-2-3-4-5-6-7-8-10-11-12- 14 standards.
- It is in small size and with high effi cacy.
- It has convenient construction in high pressure values.
- In continuous operating conditions, and in sudden hot water tractions, it provides high performance.
- With steam loop design, it provides benefi ting from heat transfer at maximum level.
- With special design, it provides less electric and fuel consumption.
- With optimum isolation, it provides maximum performance.
- It has minimum fl ue gas emissions and environmentally friendly.
- It provides high thermal effi ciency without economizers.
- BFPN : 153.4000 are solid fuel boilers made from hot water producer steel material under 6 atm construction pressure.

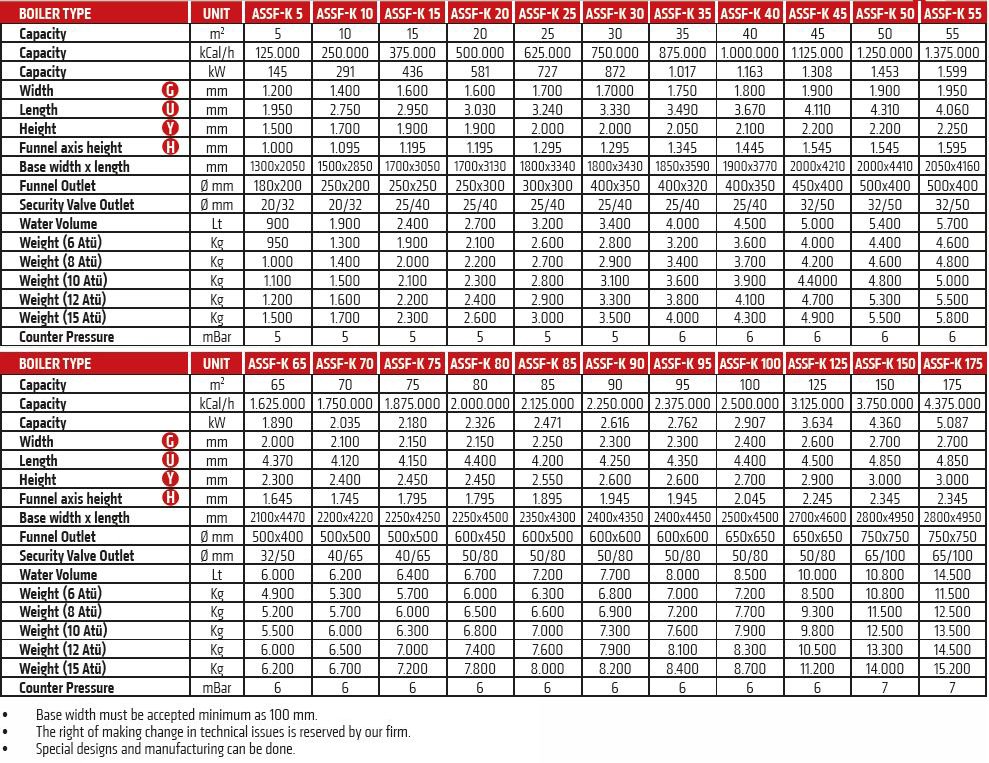

ASSF-K Liquid Gas Cylinderic Scotch Type Three Transitive Hot Water Boilers - Technical Dimensions

assf-k_table_eng
