ASSF Liquid-Gas Fuel Prismatic Three Transitive Condensing Heating Boiler - General Features

- Less energy consumption, more compact, environmentally friendly.
- Thanks to oval boiler body, low width provides boiler with easy transition to the boiler room and installation.
- Optimum thermal balance and effective heat usage, three transitions located one after the other to reduce the operating costs.
- Low heat load thanks to optimum water volume.
- Optimum muffl e geometry.
- With low funnel gas emissions, the damage to the environment has been minimized.
- Very high effi cacy provided with condensation.
- By taking the hidden heat in funnel gas, it has real usage effi – cacy reaching up to 100% (in the system of 40/30°C).
- Capacity control from 0 to 100% in both fuel and air side.
- Less switching (stop – stand) number and operating without problem for longer time.
- With continuous fl ow principle, operating without minimum flow condition.
- Keeping room temperature with the tolerance of ±0,1°C

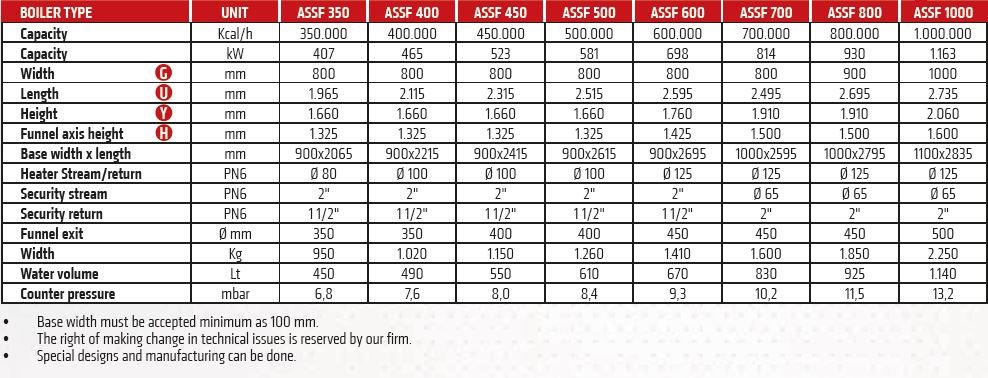

ASSF Liquid-Gas Fuel Prismatic Three Transitive Condensing Heating Boiler - Technical Dimensions

assf3_table_eng
