ASSF-B Liquid-Gas Fuel Cylinderic Scotch Type Three Transitive Steam Boivlers - General Features

- It complies with TS EN 12953-1-3, TS 377-1-2-3-4-5-6-7-8- 10-11-12-14, TS EN 12953-1-2-3-4-5-6-7-8-10-11-12- 14 standards.
- It is in cylindrical structure and it has high performance.
- It has a large steam volume.
- It has high heating surface.
- With low counter pressure values, it provides better burning.
- With its special construction, it provides acquiring drier steam with higher energy.
- Optimum isolation amount increases boiler performance in reaching to maximum effi ciency.
- It has minimum chimney gas emission rates and it is environmentally- friendly.
- With high capacity range, it provides large industrial usage area.
- BFPN: 153.3400,6 are liquid-gas fuel boilers made from steam producer steel material under 6 atm construction pressures.

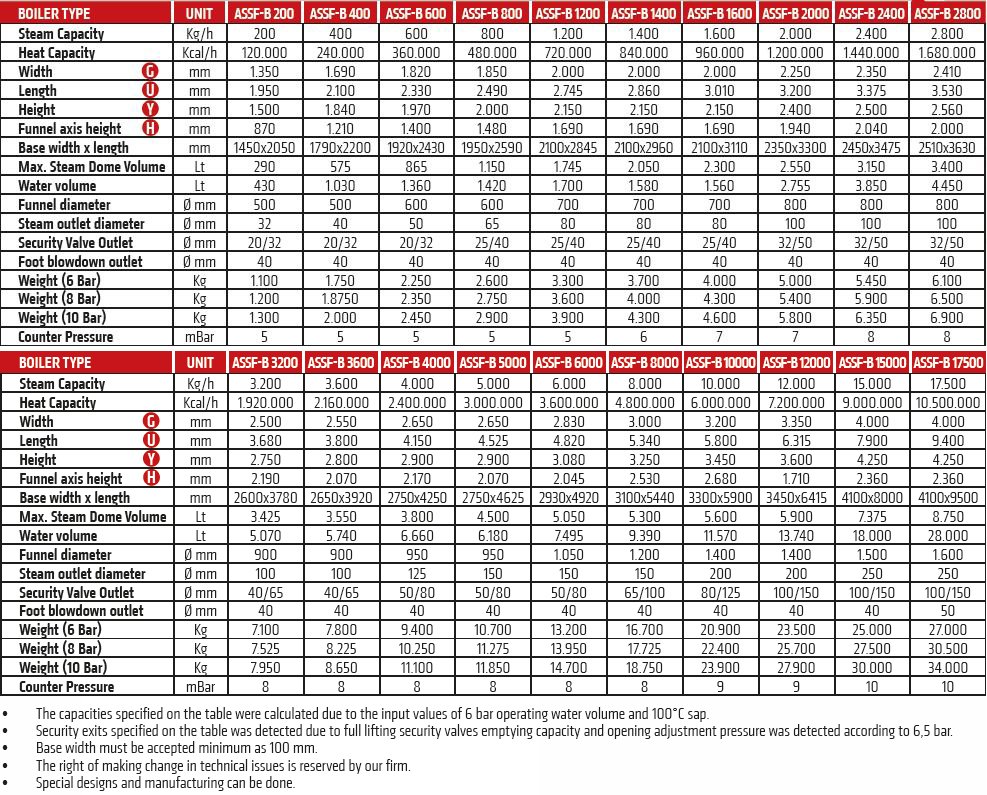

ASSF-B Liquid-Gas Fuel Cylinderic Scotch Type Three Transitive Steam Boivlers - Technical Dimensions

assf-b_table_eng
